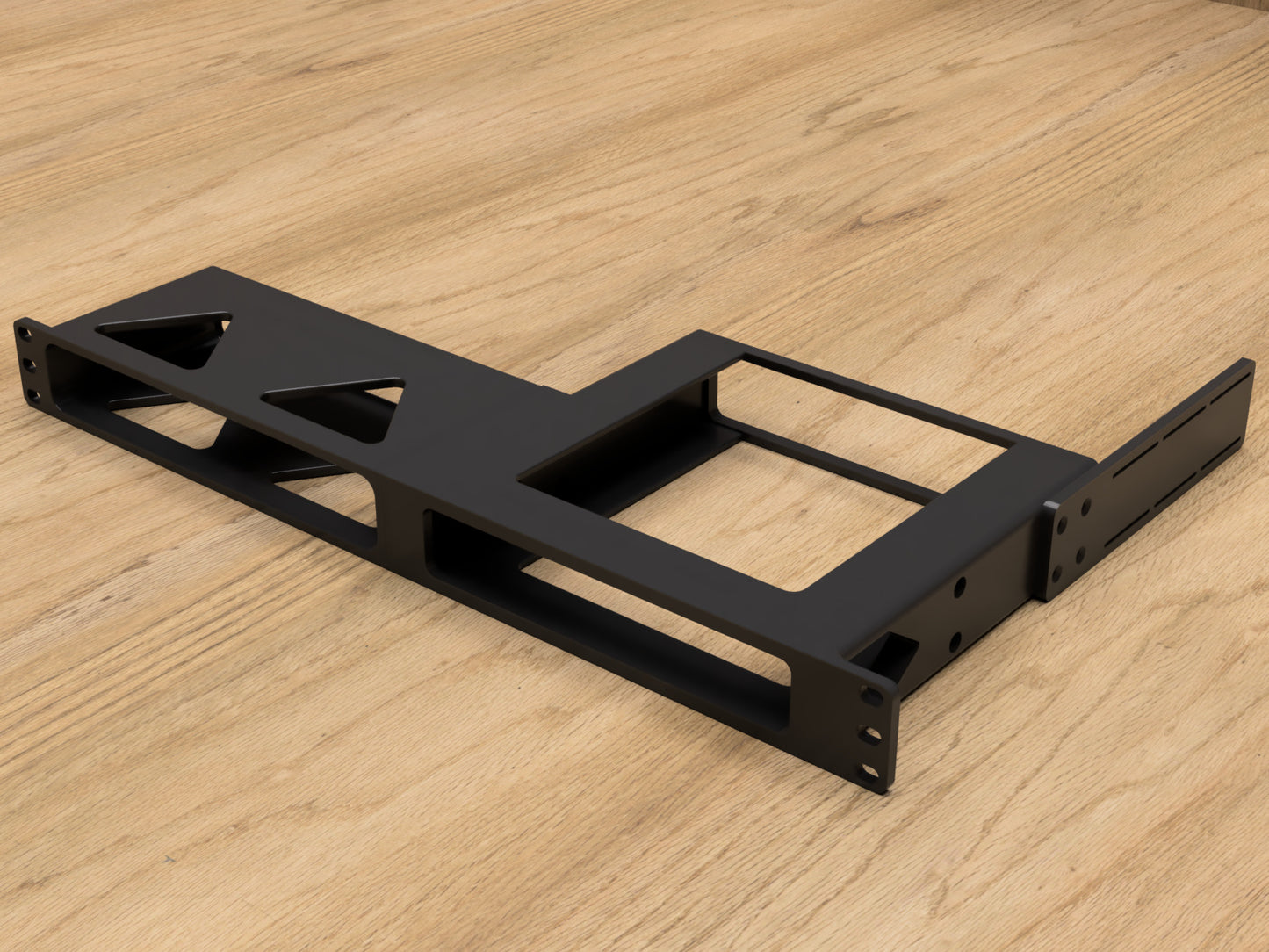

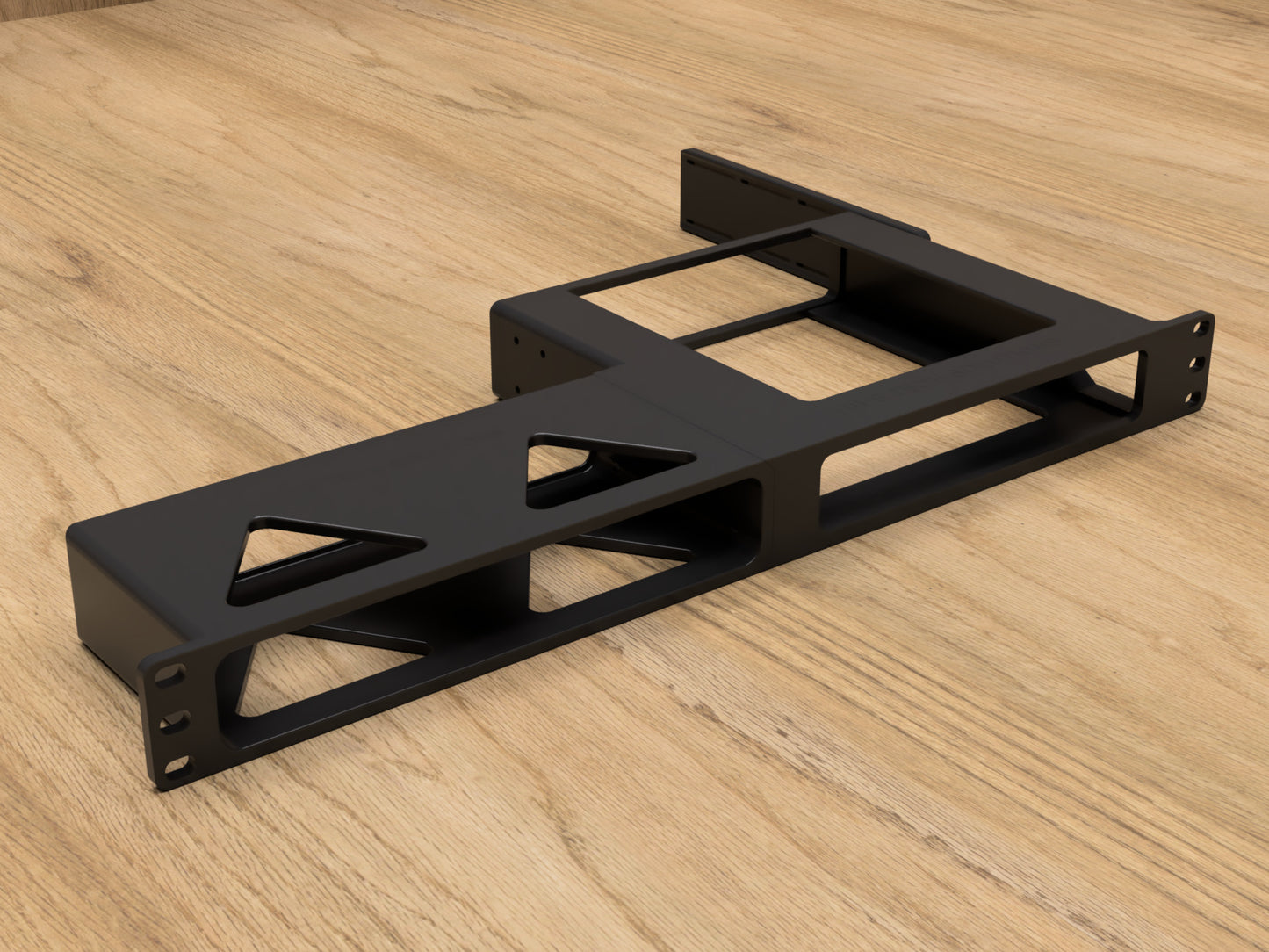

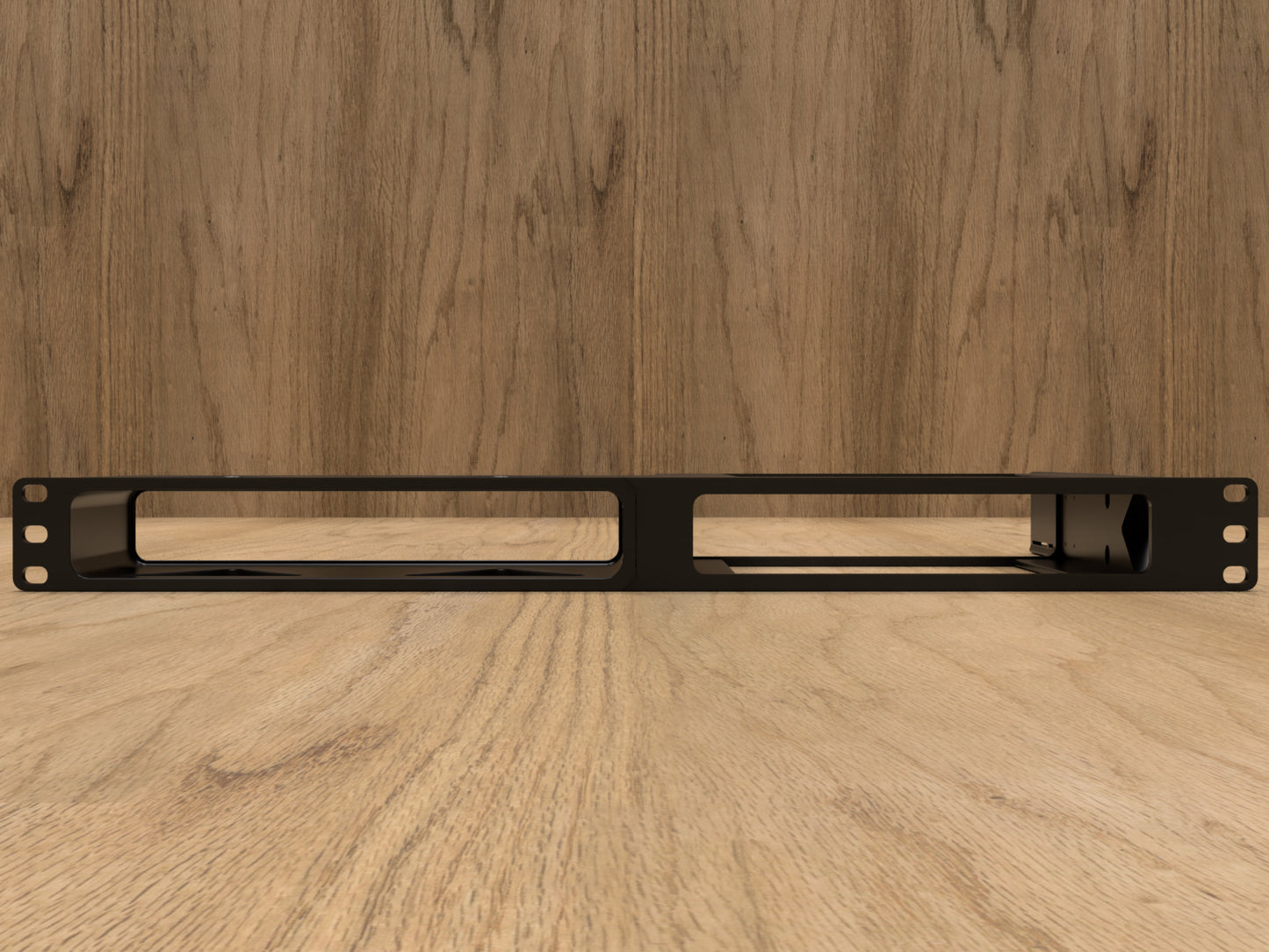

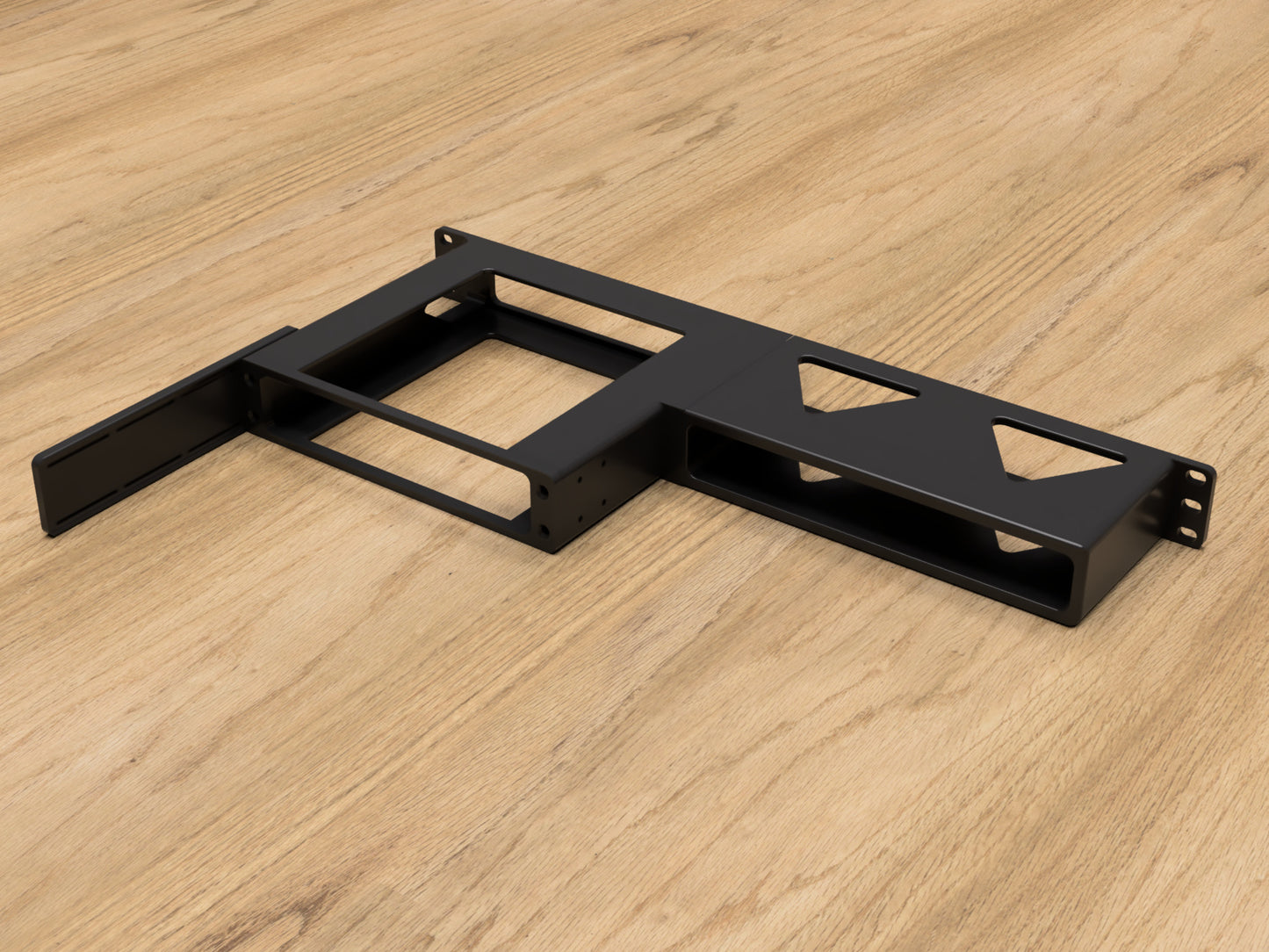

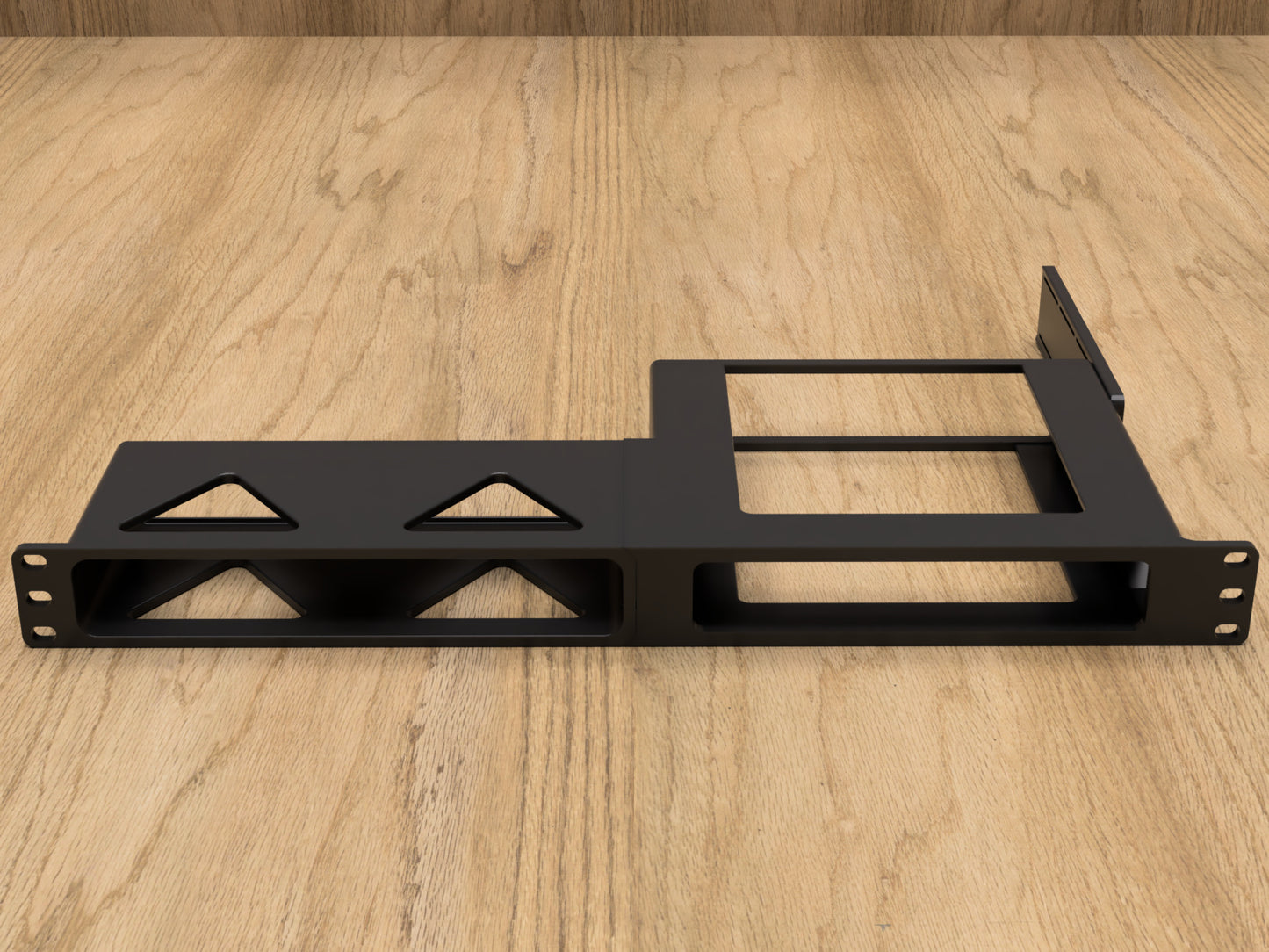

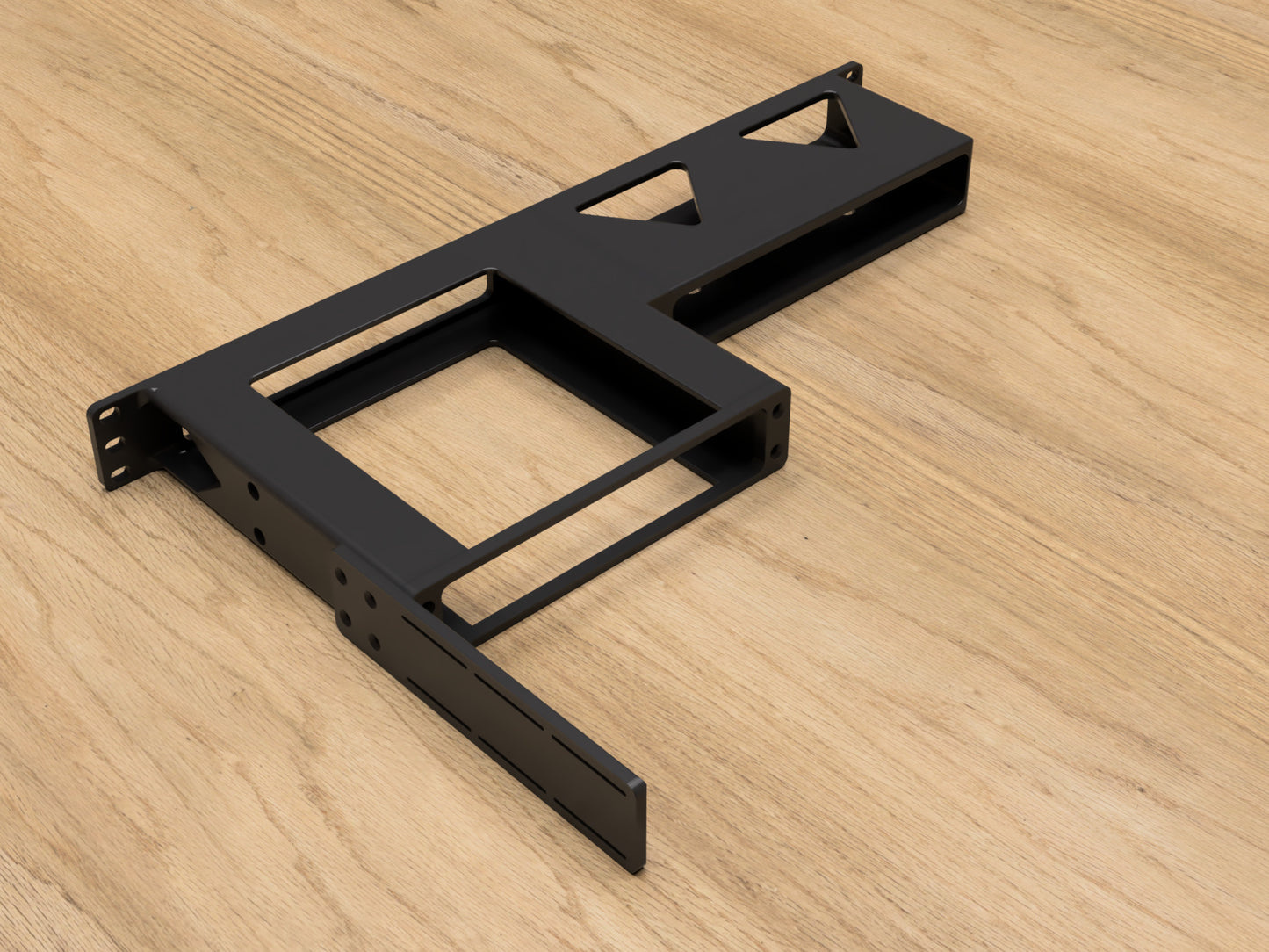

The mount comes fully assembled. The Flex 2.5 PoE Switch slides into the frame from the front and the Mini PC slides into the frame from the rear and can either have it's ports facing forwards or backwards.
Installation Instructions: 1) Remove the rubber feet from the Mini PC. 2) Unscrew the Back Plate from the Rack Mounting kit. 3) Slide the Mini PC in from the back 4) Secure the Back Plate 5) Optional - Attach PSU/Cable arm 6) Slide the Flex 2.5G POE Switch in from the front.
Does not include Rack Screws, Cage Nuts, or Network equipment.
Do you need to have text or a logo printed on the front? Custom color? Let me know and we can work it out!
Please note that all 3d printed items will have slight cosmetic differences due to the nature of the process. However, all items will be fully functional.
