Rack mount for 3x Raspberry Pi's (Modular - Static)
Rack mount for 3x Raspberry Pi's (Modular - Static)

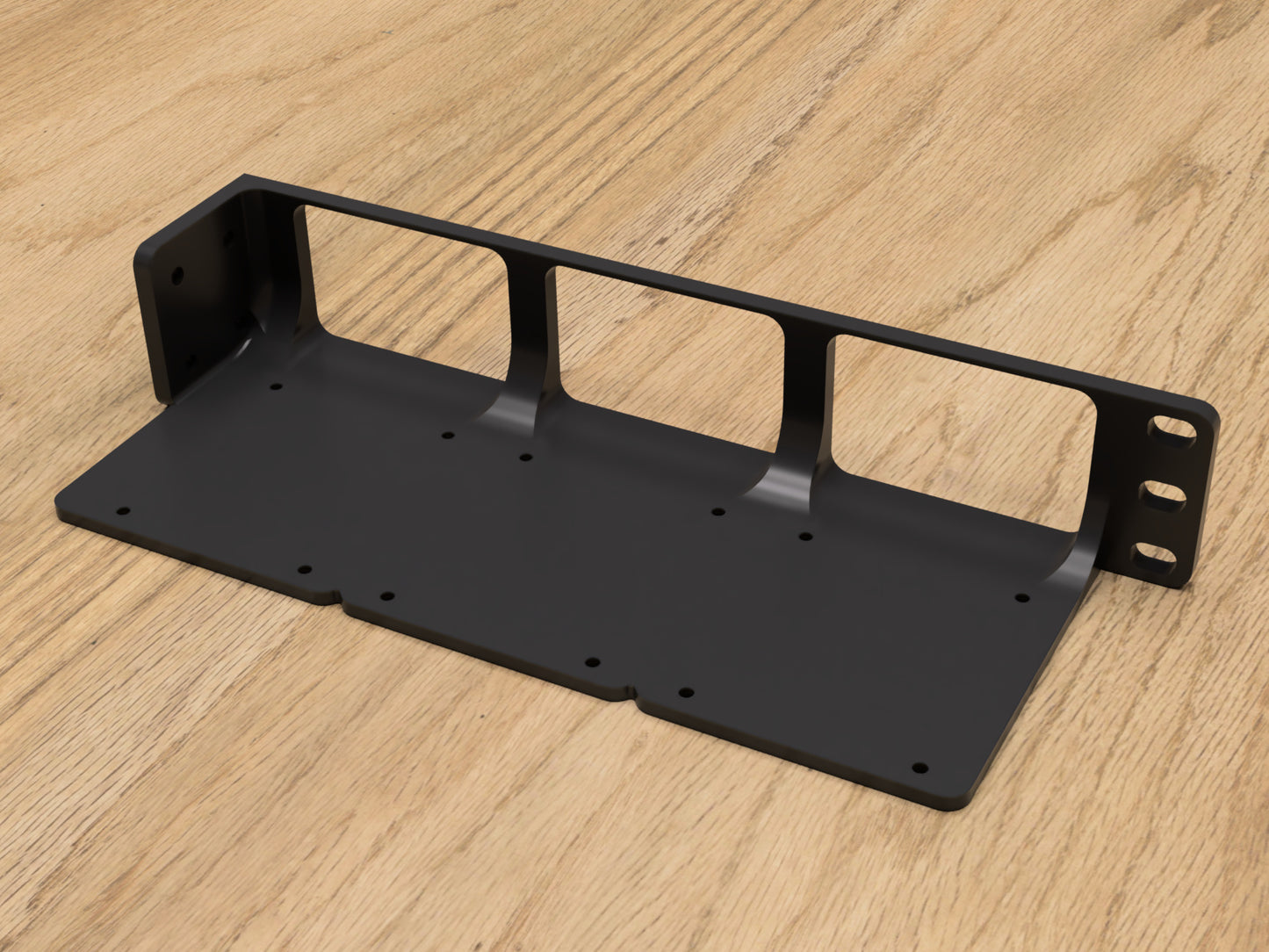

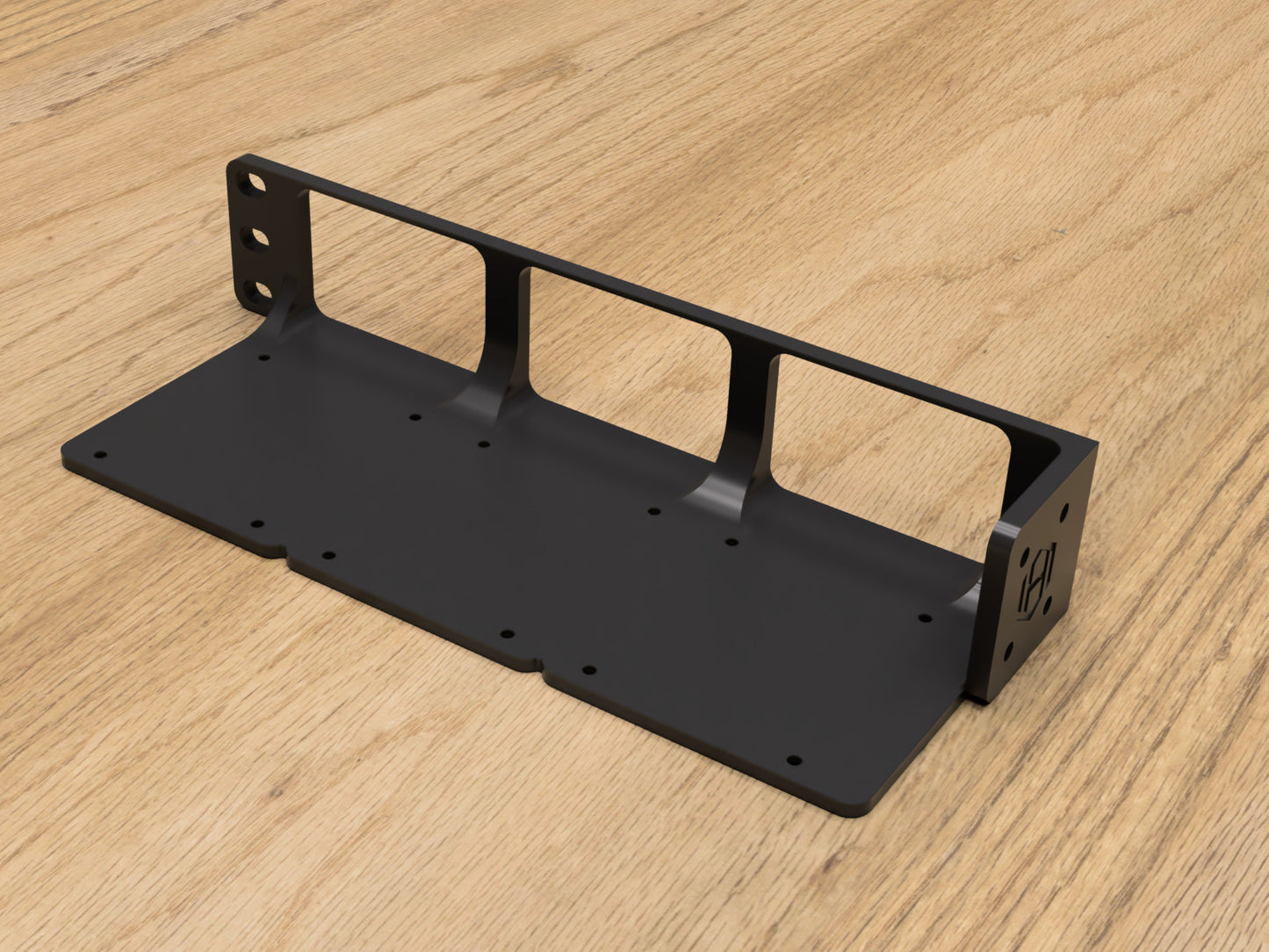

3D Printed rack mount that lets you mount up to 3x RaspberryPi 3B ,4 or 5 units into a Single RU on a standard 19Inch Rack! This is part of our ModMount Range, so you can mix and match your parts, or you can use 2 of these to mount a total of 6 RaspberryPi's together!
This version of the mount is designed to provide the maximum possible vertical clearance to allow for larger expansion boards (Like NVME HAT's). The total vertical clearance inside the mount is 39mm
The screws to fasten the Raspberry PI's to the trays are NOT INCLUDED. As a reference, if you are using a HAT with your RPI, then you can use some 12mm M2.5 screws, up through the bottom of the Mounting Tray into the HAT Standoffs.

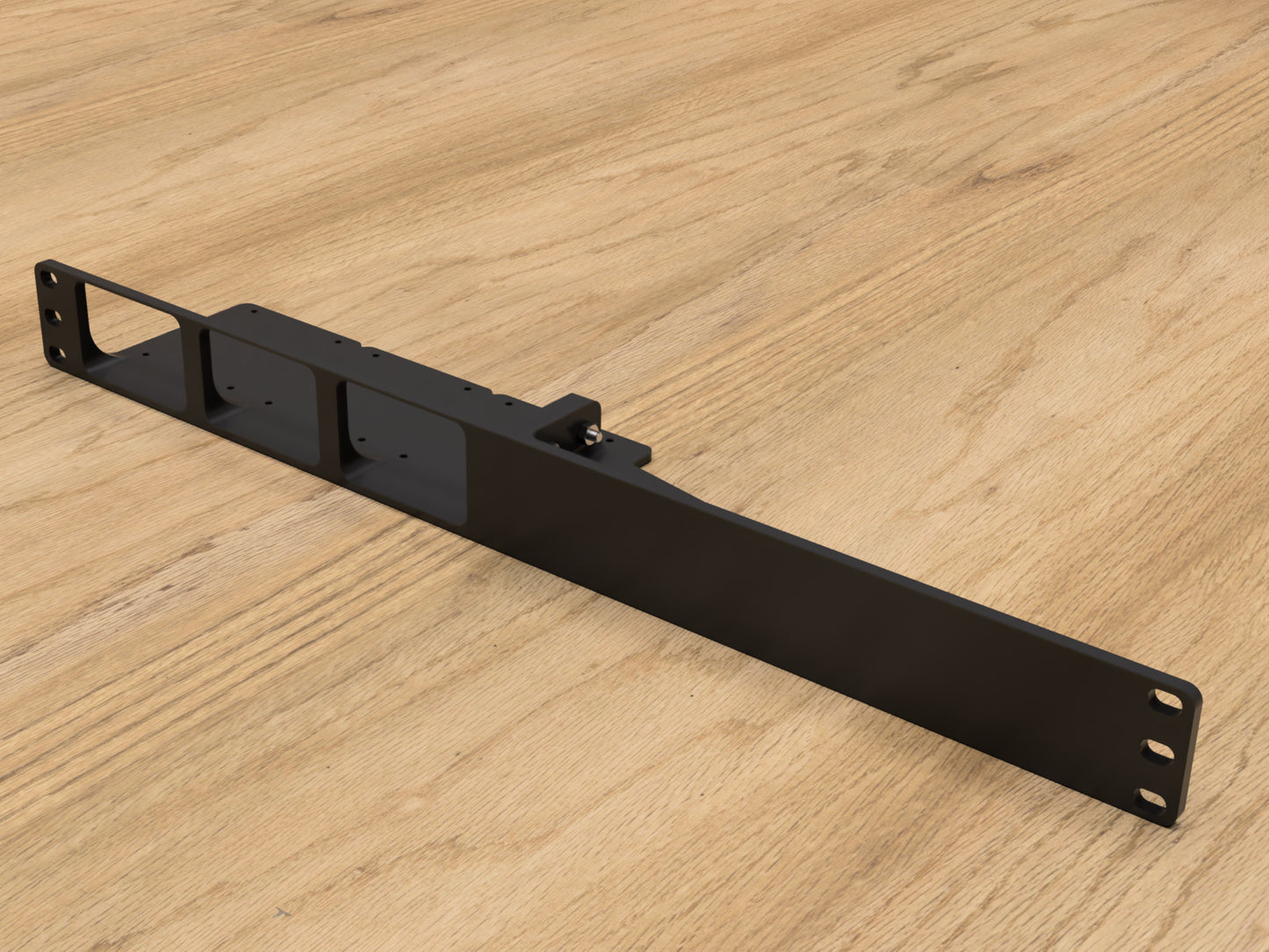

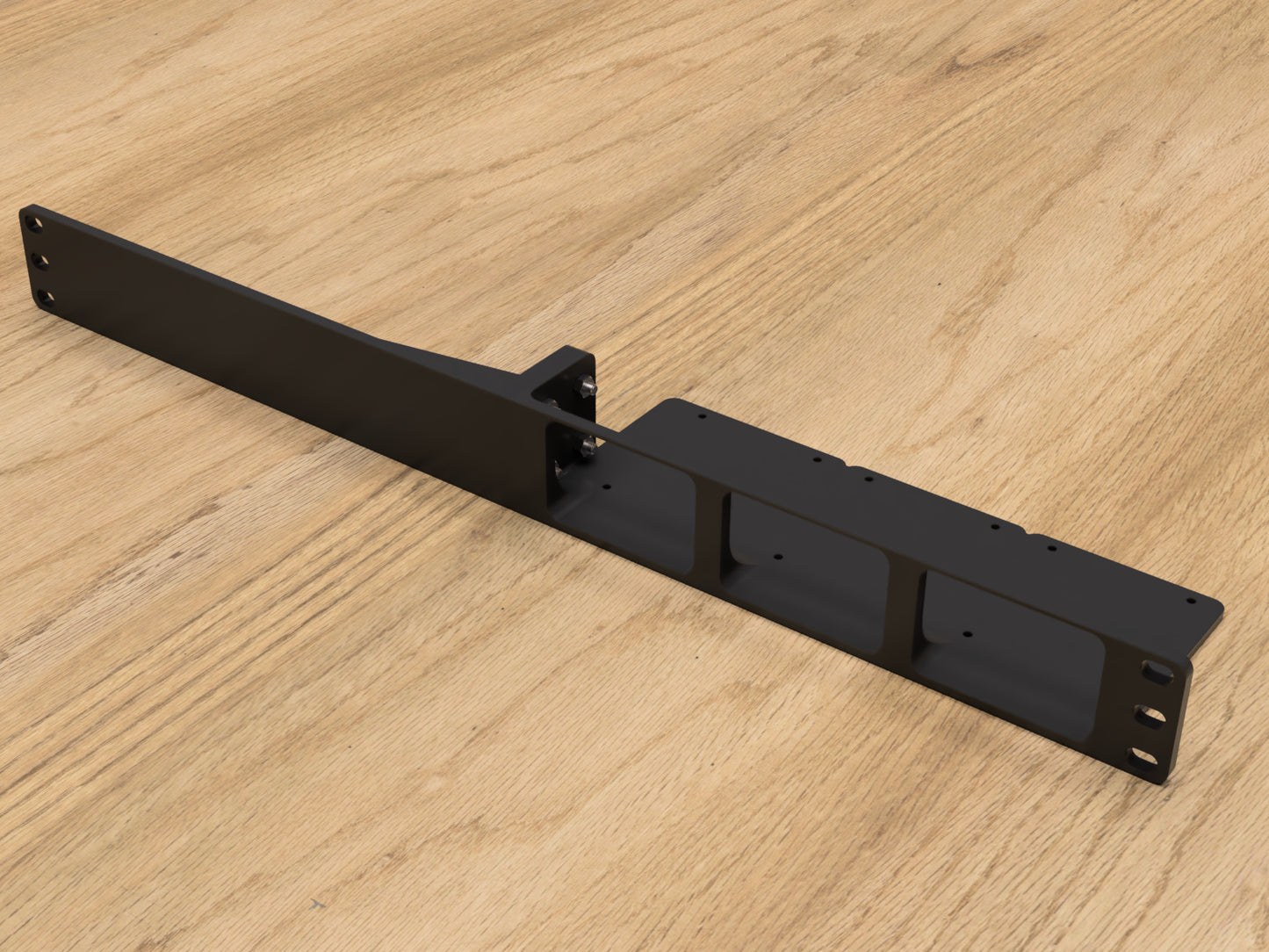

NOTE: You will need to pair this with another ModMount item (Like a Blanking Plate (Or a second RPI Mount) to make a full 1RU Width, joining screws are included.

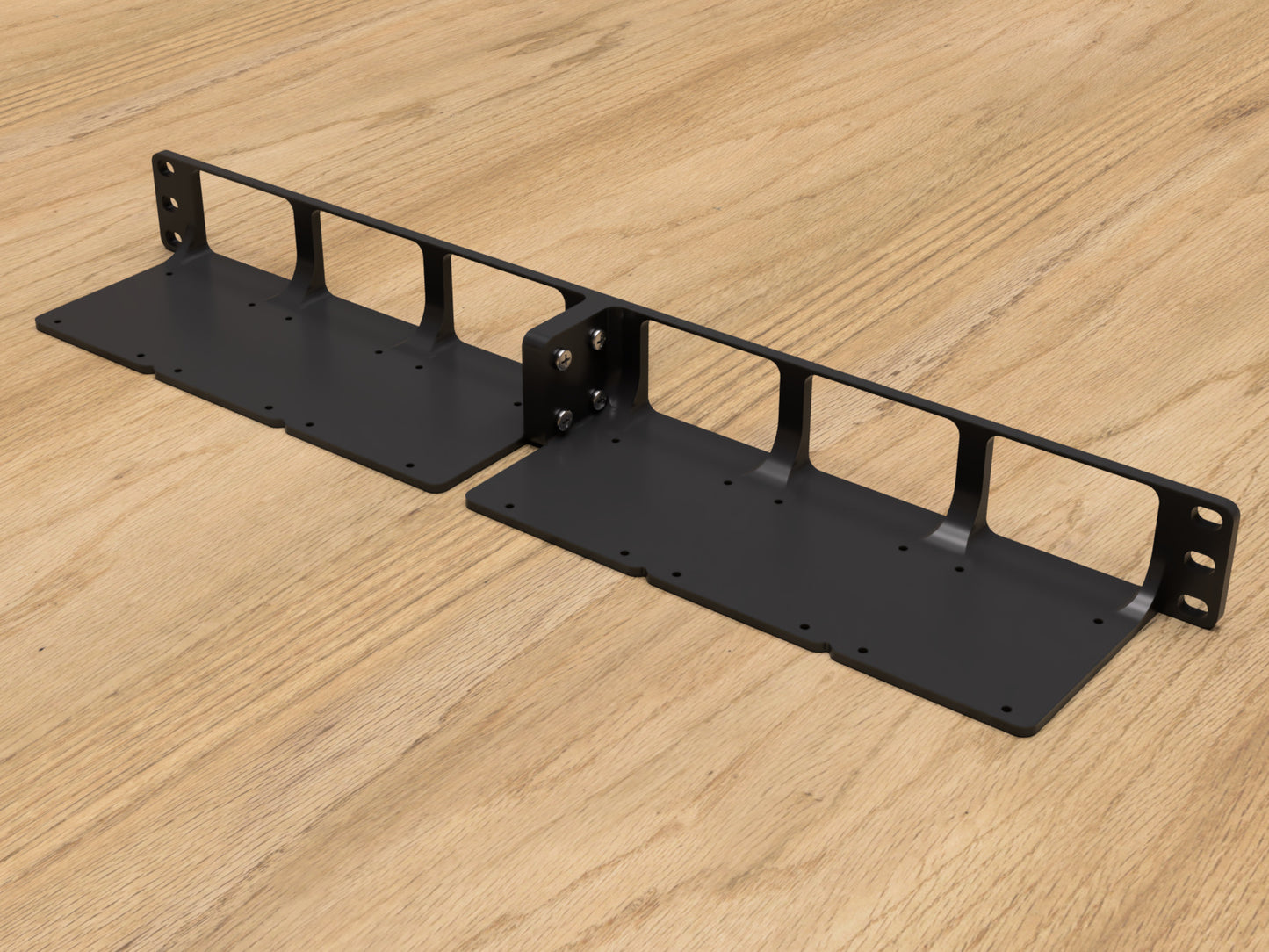

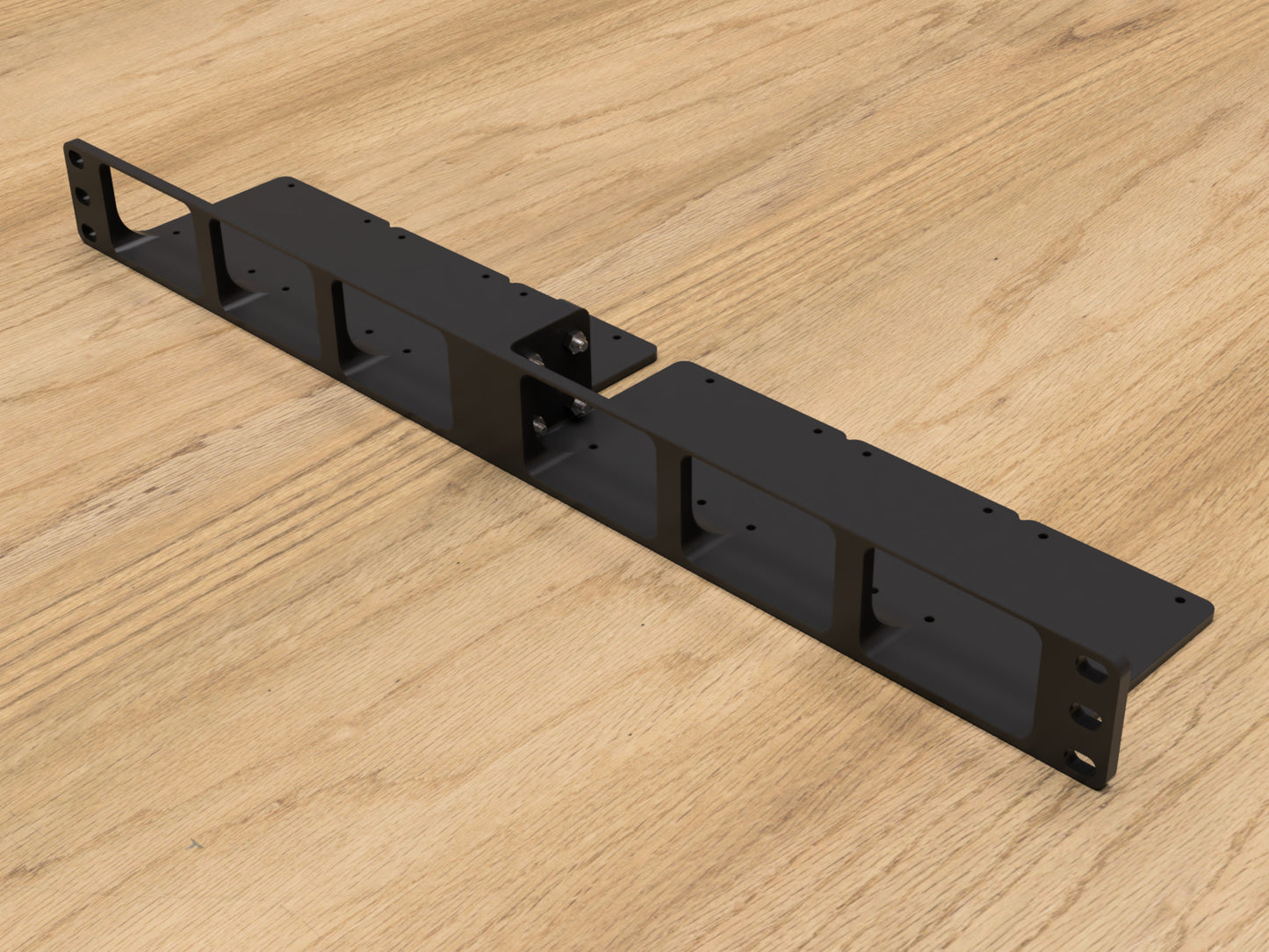

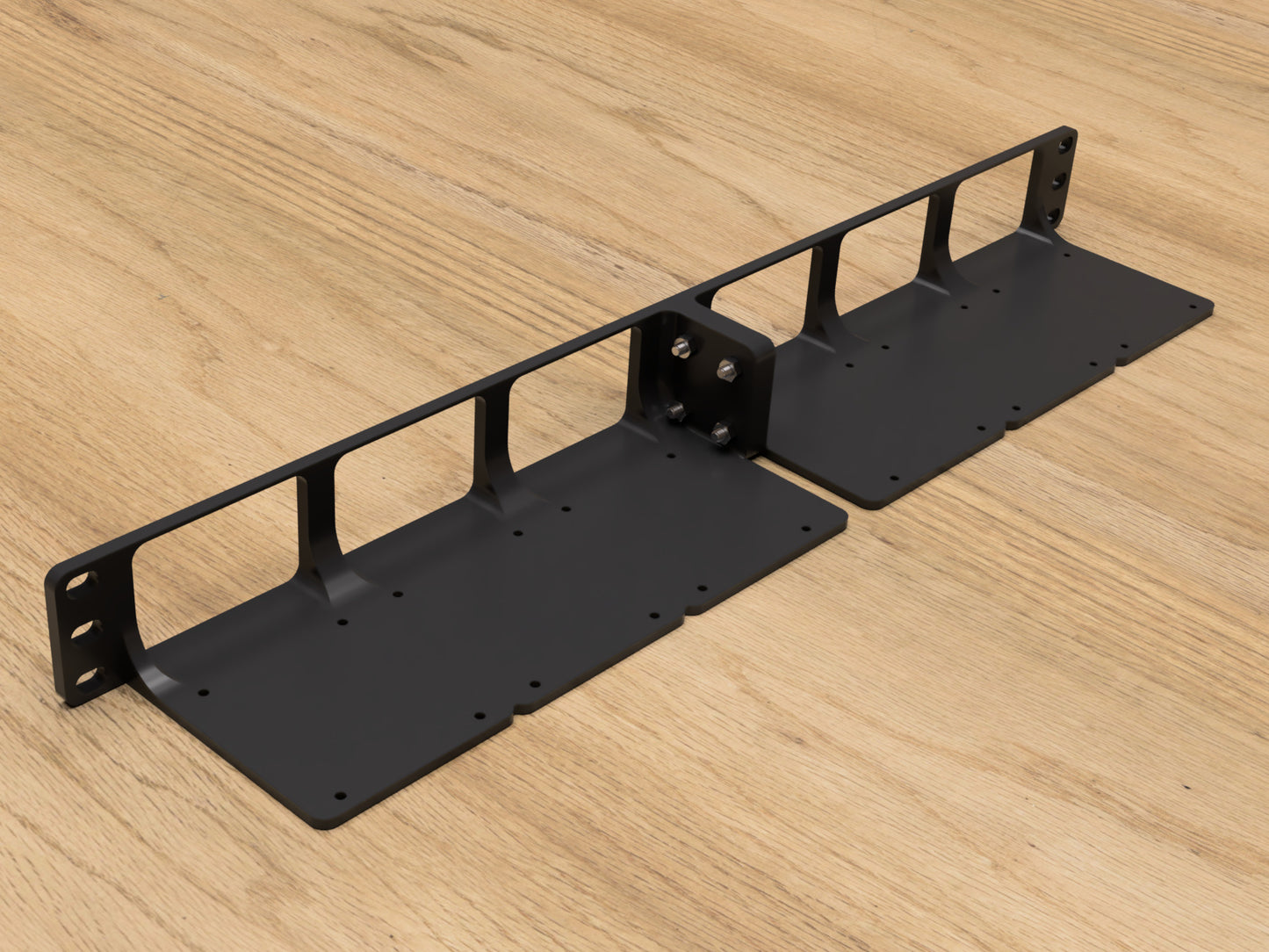

If you select the 2x Mounts style, it will come with a Left and Right Orientation Mount (The "Orientation" Style option will be ignored).
This listing is just for the Mount, other photos showing Blanks etc are just for example. Does not include Rack Screws, Cage Nuts, or Network equipment.
The ModMount range is expanding, so if you don't see a mount for your equipment let me know and I can prioritize designing one for you.
Do you need to have text or a logo printed on the front? Custom color? Let me know and we can work it out!
