Hive Tech Solutions

Rack mount for 3x Raspberry Pi's (Modular)

Rack mount for 3x Raspberry Pi's (Modular)

Regular price $85.00 AUD
Regular price Sale price $85.00 AUD
Sale Sold out
Tax included.
Style
Orientation

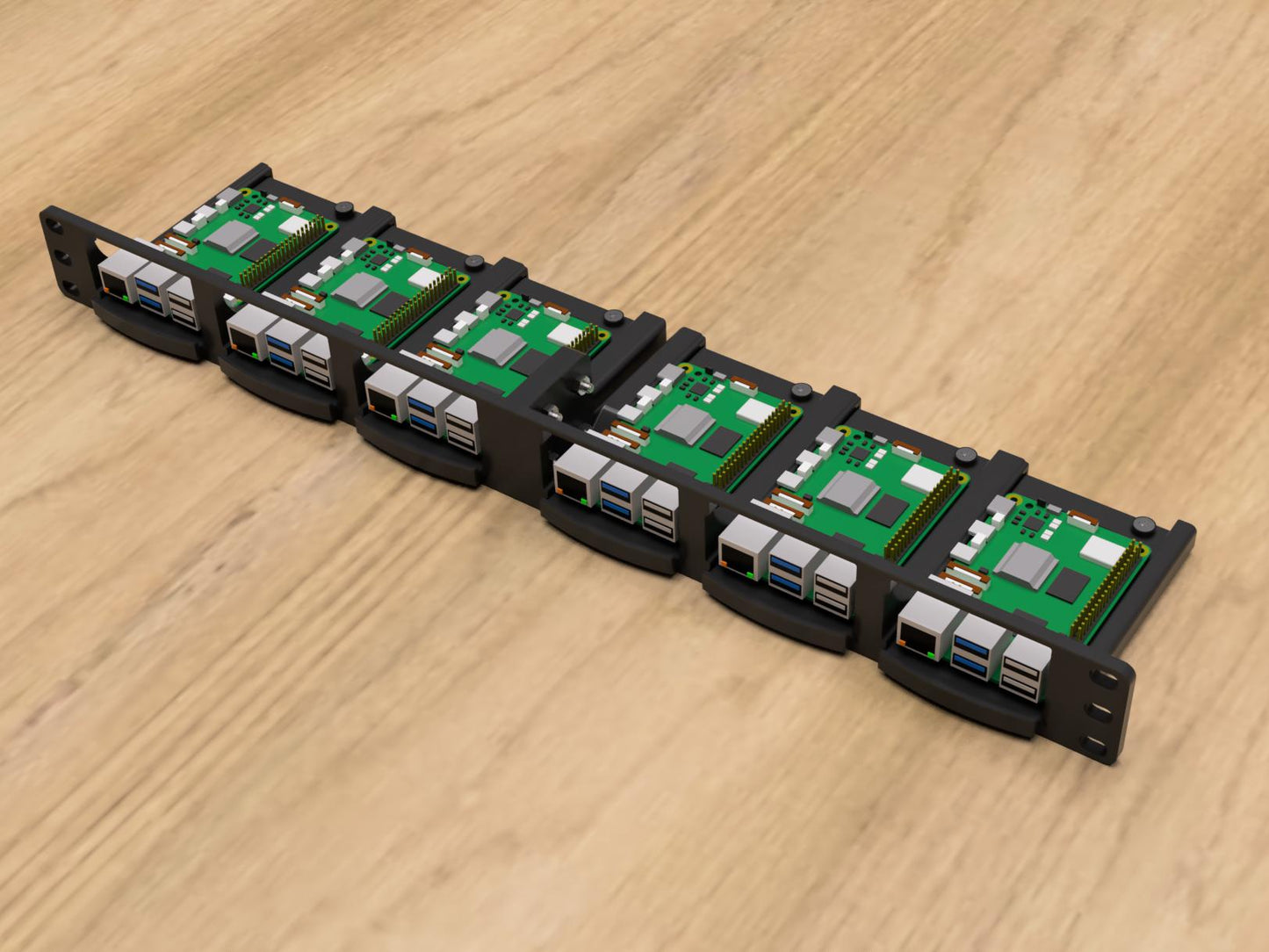

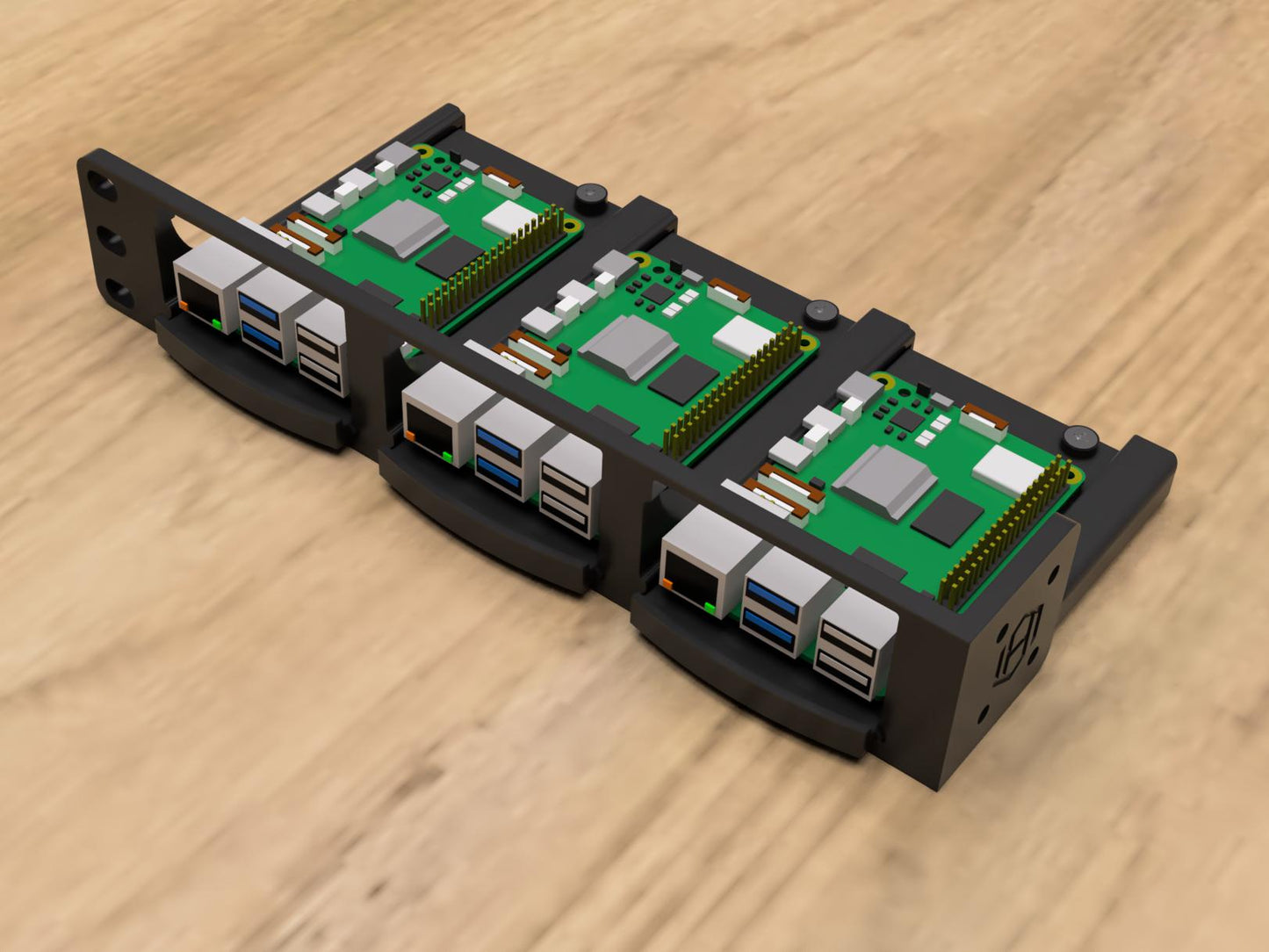

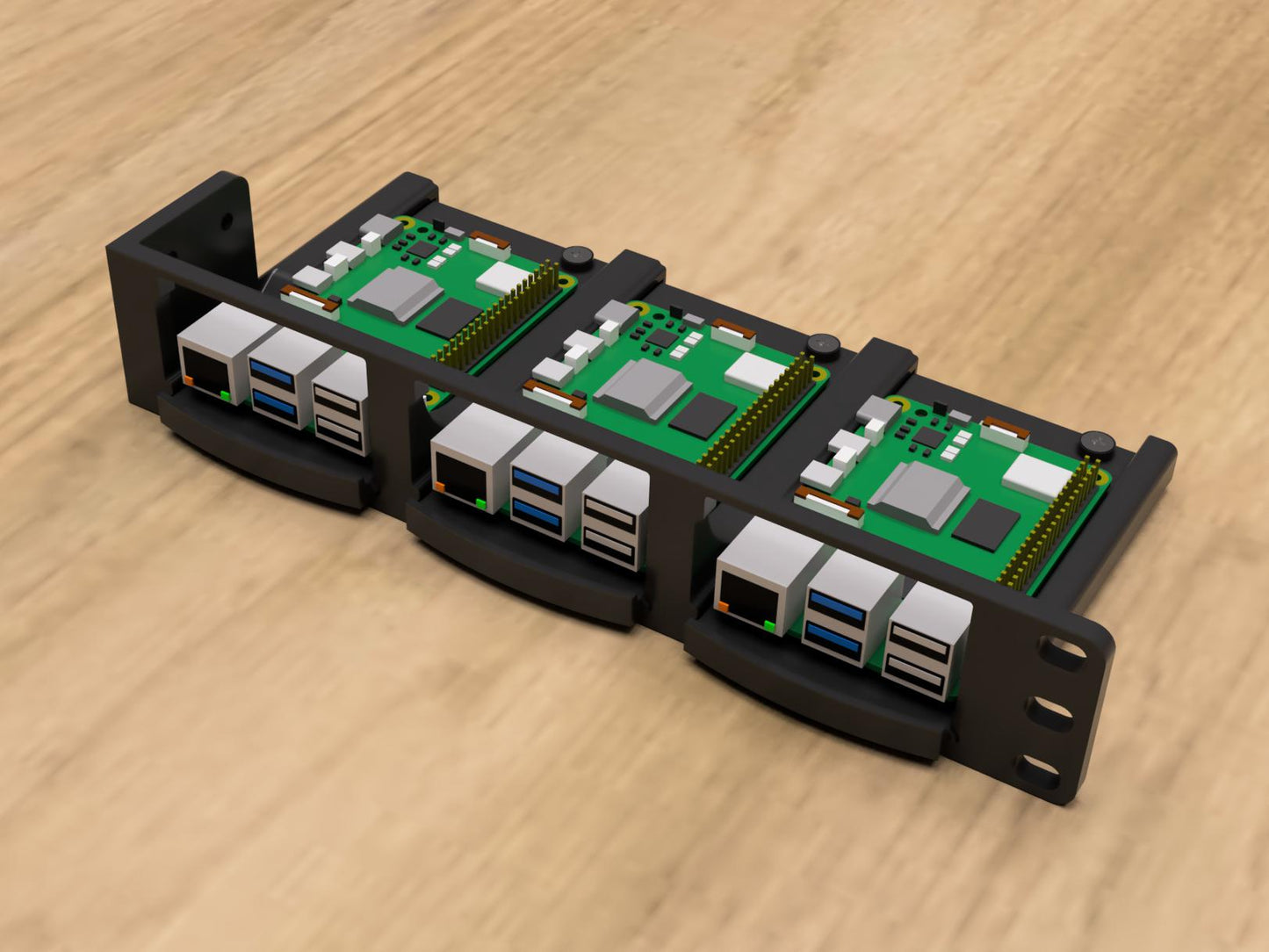

3D Printed rack mount that lets you mount up to 3x RaspberryPi 3B ,4 or 5 units into a Single RU on a standard 19Inch Rack! This is part of our ModMount Range, so you can mix and match your parts, or you can use 2 of these to mount a total of 6 RaspberryPi's together!

This is an updated version of our Raspberry Pi mount, and now has additional Height clearance to support expansion boards (Like the RPI5 NVME Board).

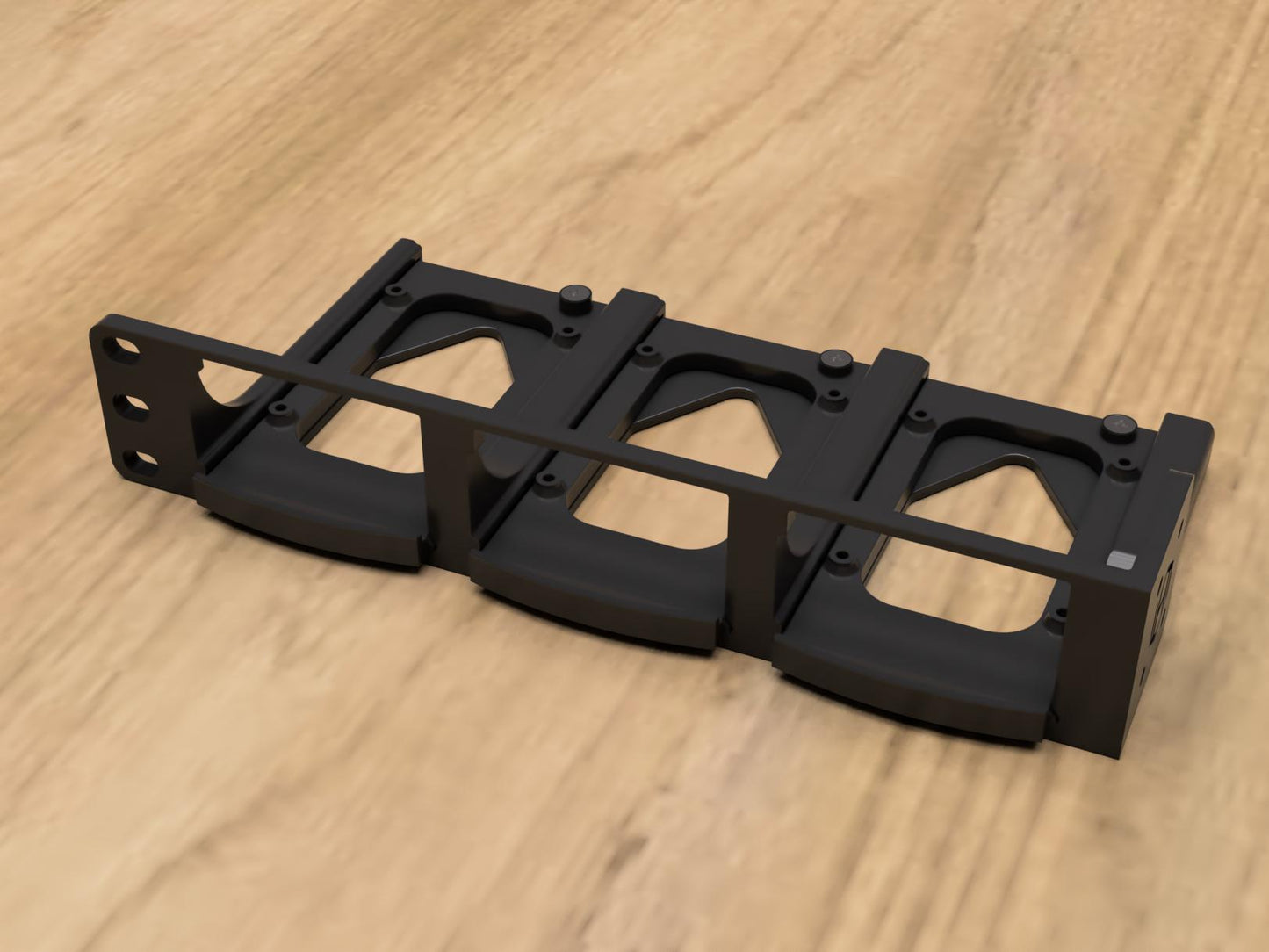

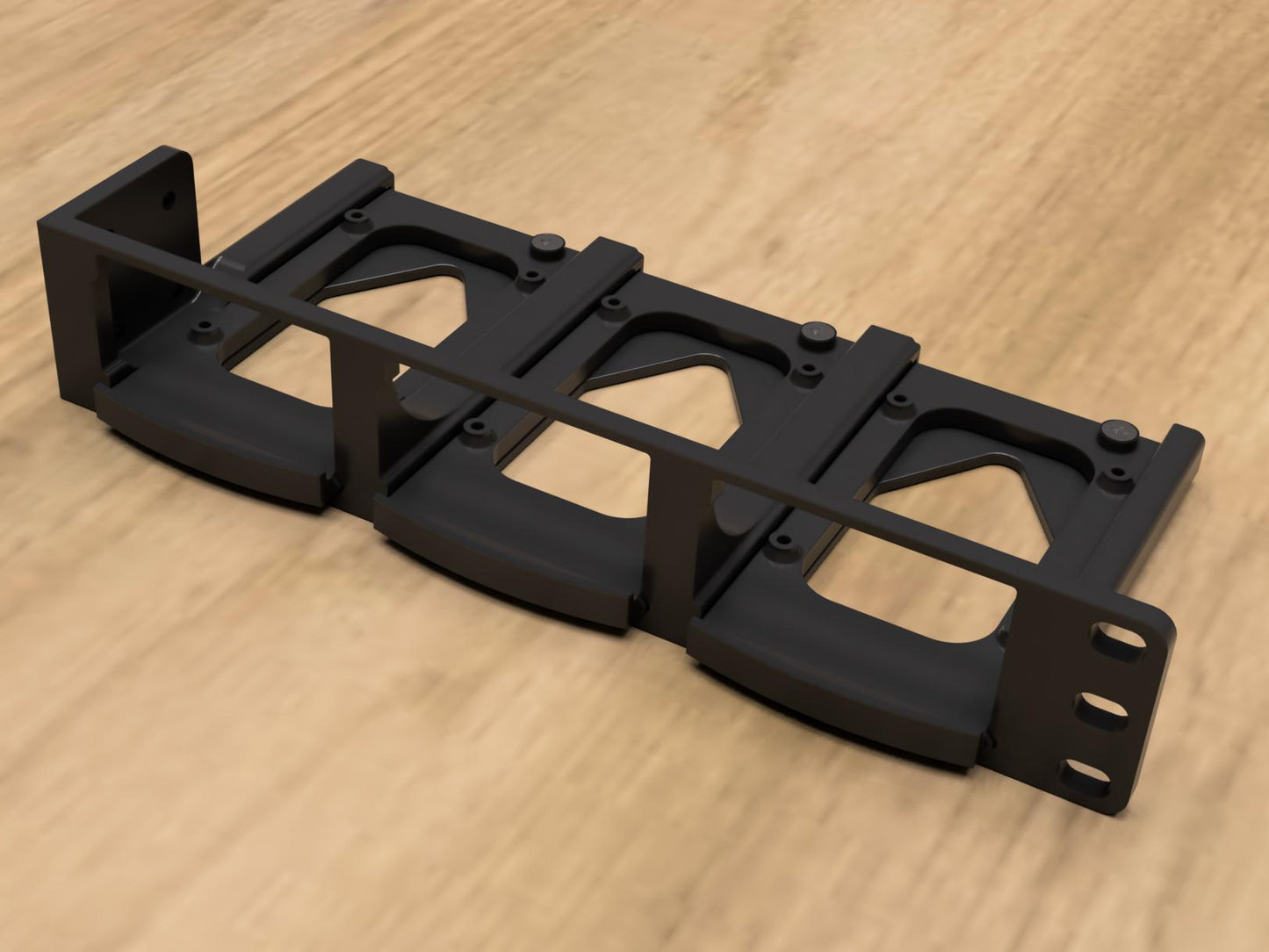

The rPI's are mounted onto removable sleds so that they are easy to remove, but you can also secure them with a screw if you'd prefer to hold them in place.

The screws to fasten the rPI's to the trays are NOT included. However for reference, if you are using a HAT with your RPI, then you can use some 12mm M2.5 screws, up through the bottom of the Mounting Tray into the HAT Standoffs.

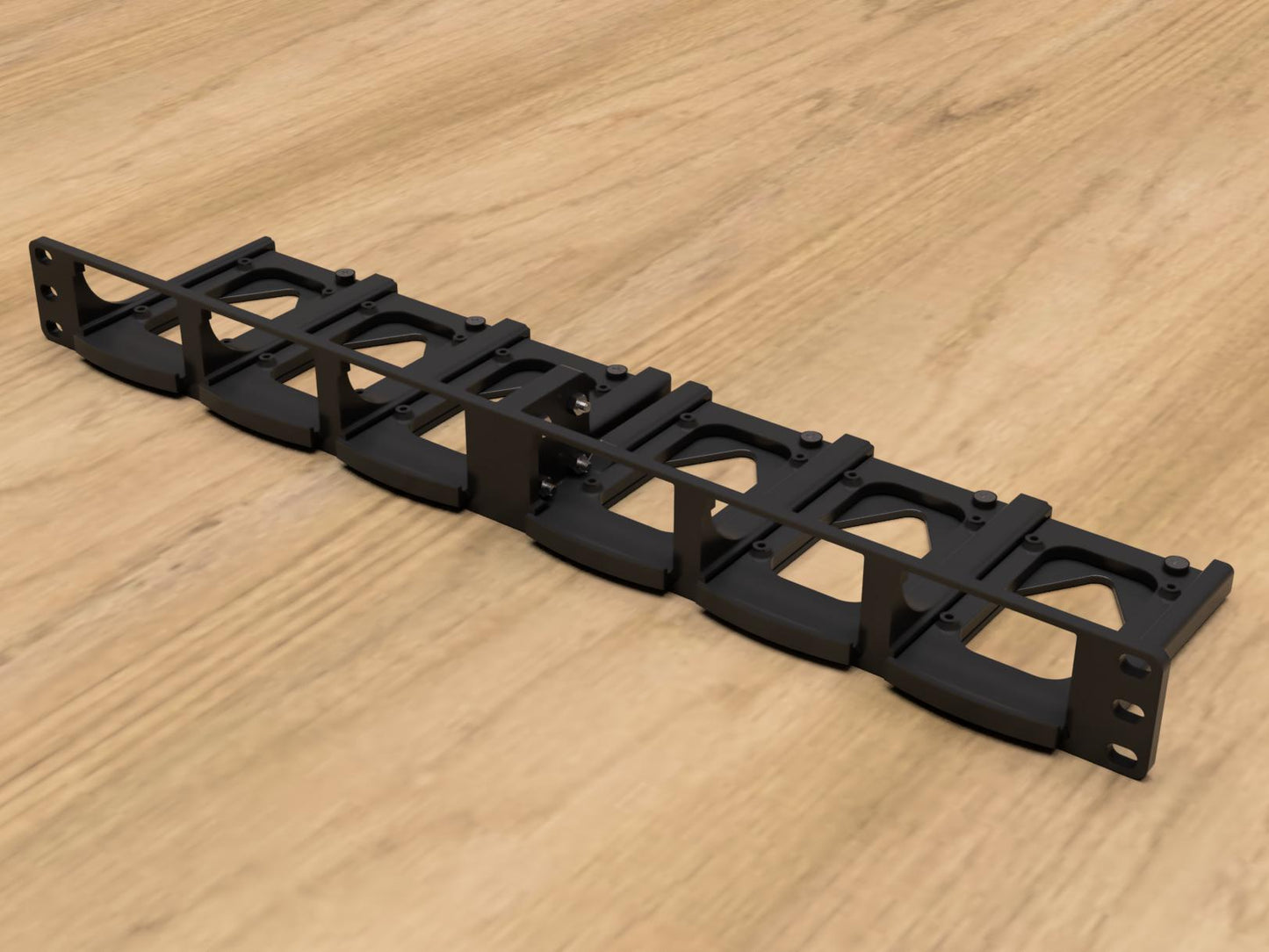

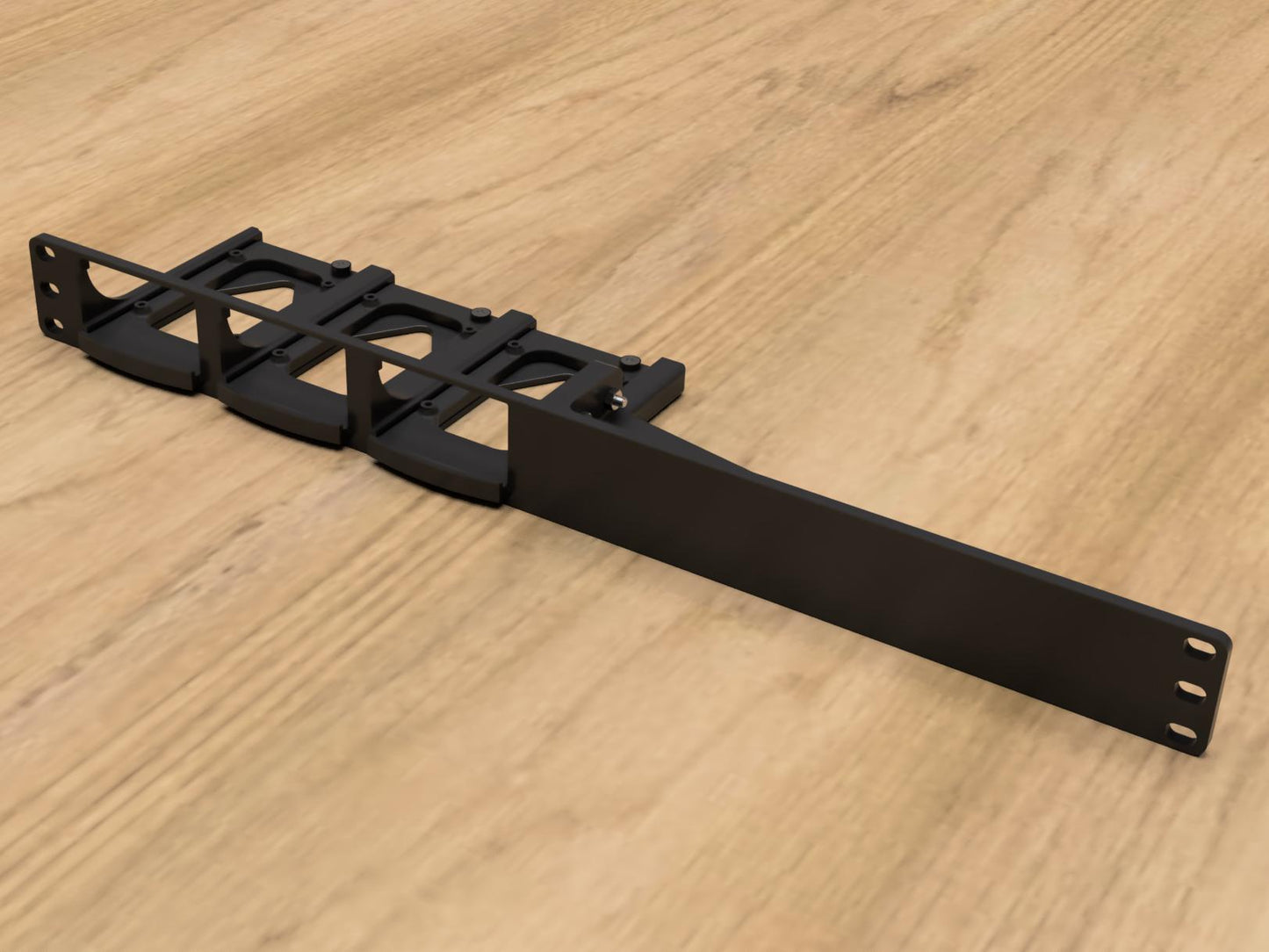

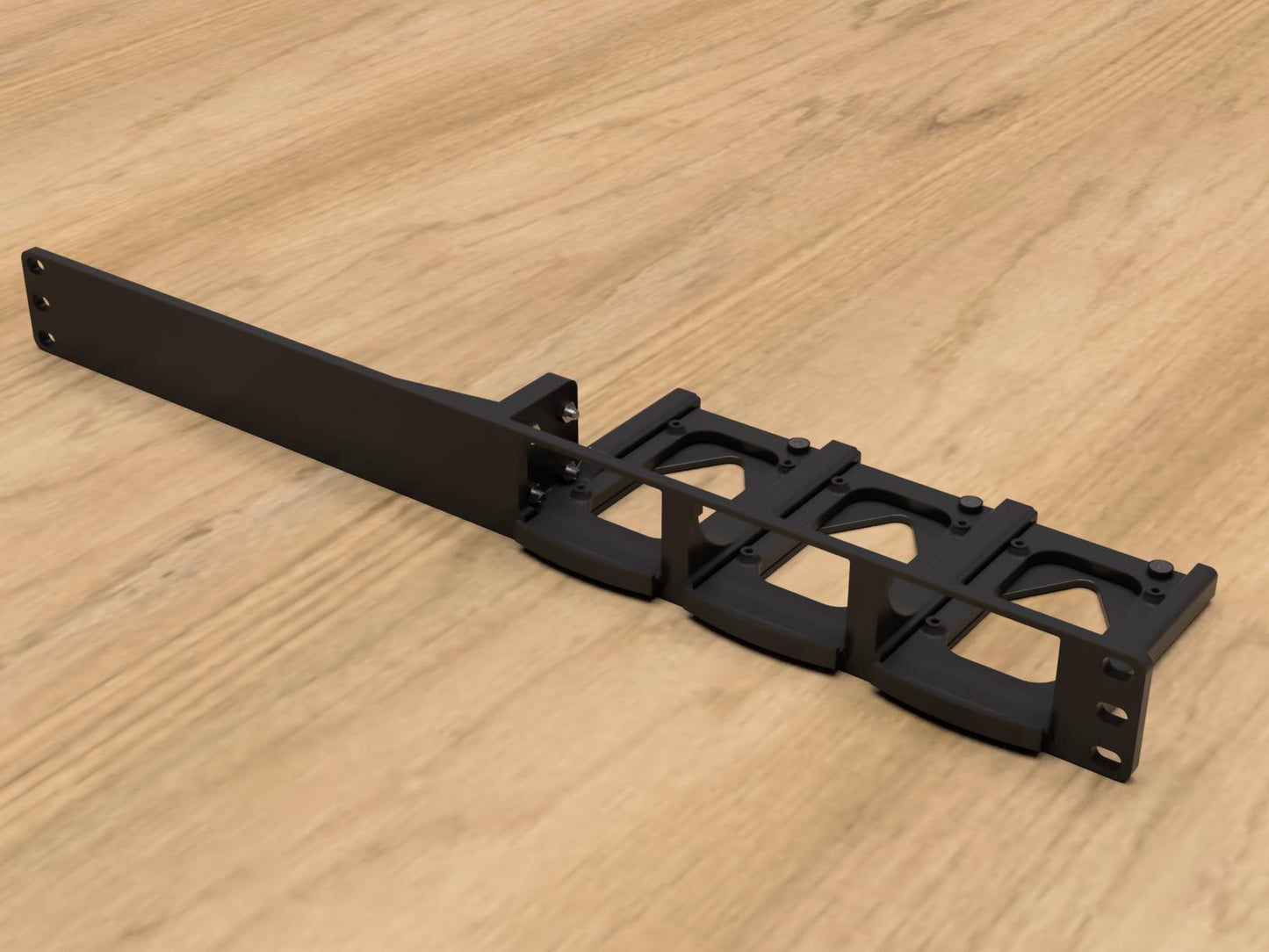

NOTE: You will need to pair this with another ModMount item (Like a Blanking Plate (Or a second RPI Mount) to make a full 1RU Width, joining screws are included.

If you select the 2x Mounts style, it will come with a Left and Right Orientation Mount (The "Orientation" Style option will be ignored).

This listing is just for the Mount, other photos showing Blanks etc are just for example. Does not include Rack Screws, Cage Nuts, or Network equipment.

The ModMount range is expanding, so if you don't see a mount for your equipment let me know and I can prioritize designing one for you.

Do you need to have text or a logo printed on the front? Custom color? Let me know and we can work it out!
