10 Inch Rack Mount for Lutron Smart Bridge / PRO & Raspberry Pi 3B / 4 / 5
10 Inch Rack Mount for Lutron Smart Bridge / PRO & Raspberry Pi 3B / 4 / 5
Couldn't load pickup availability

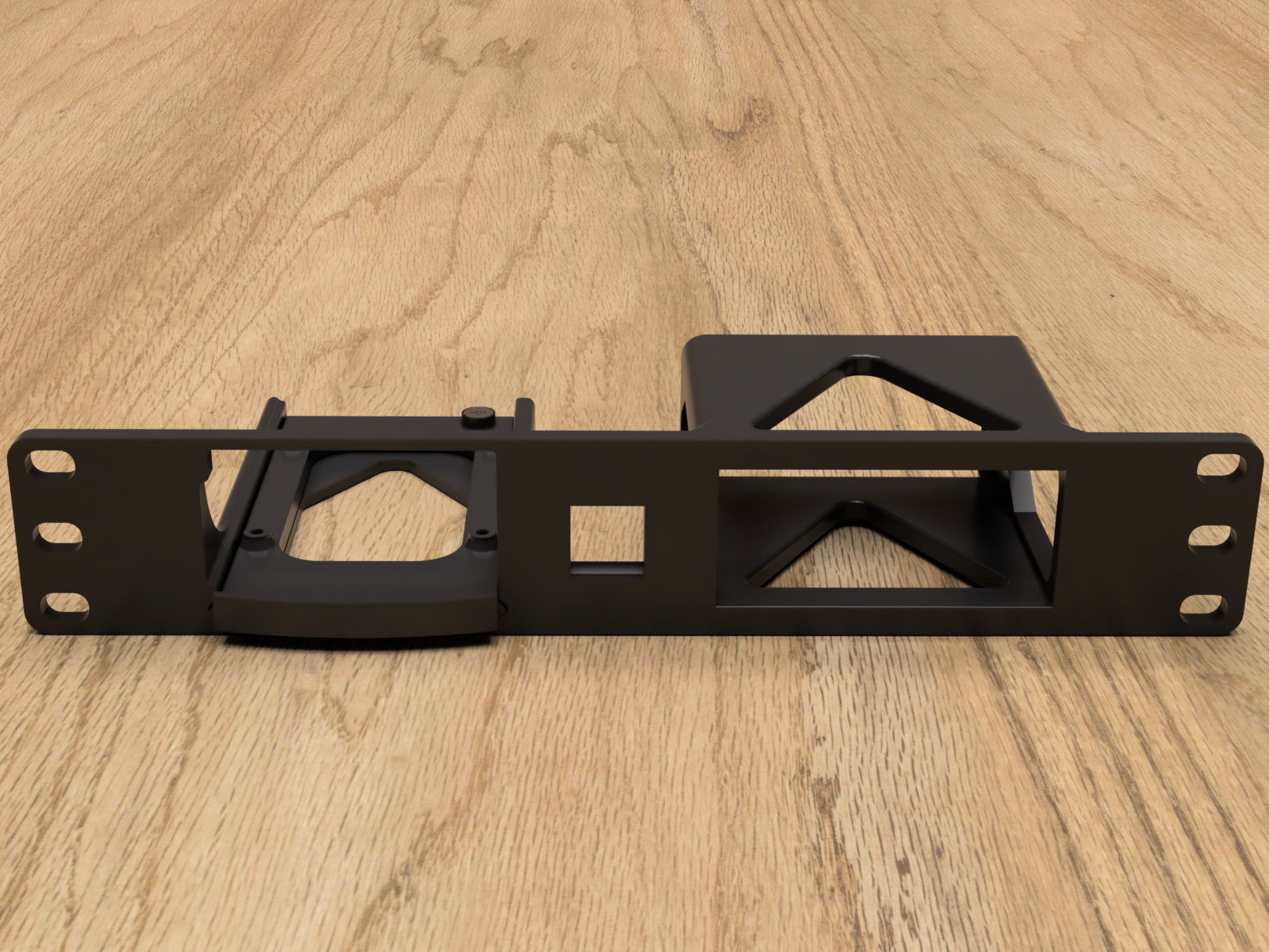

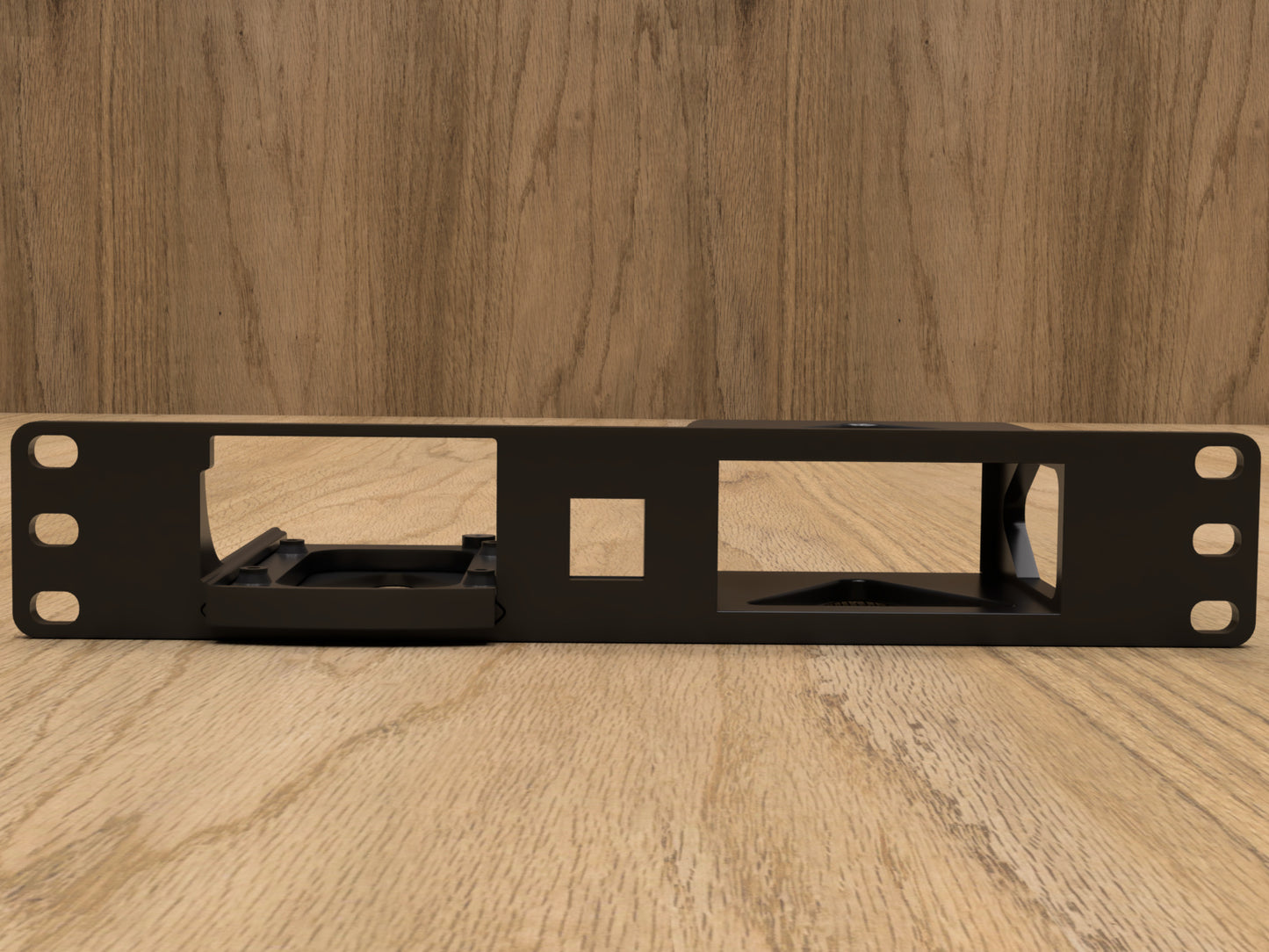

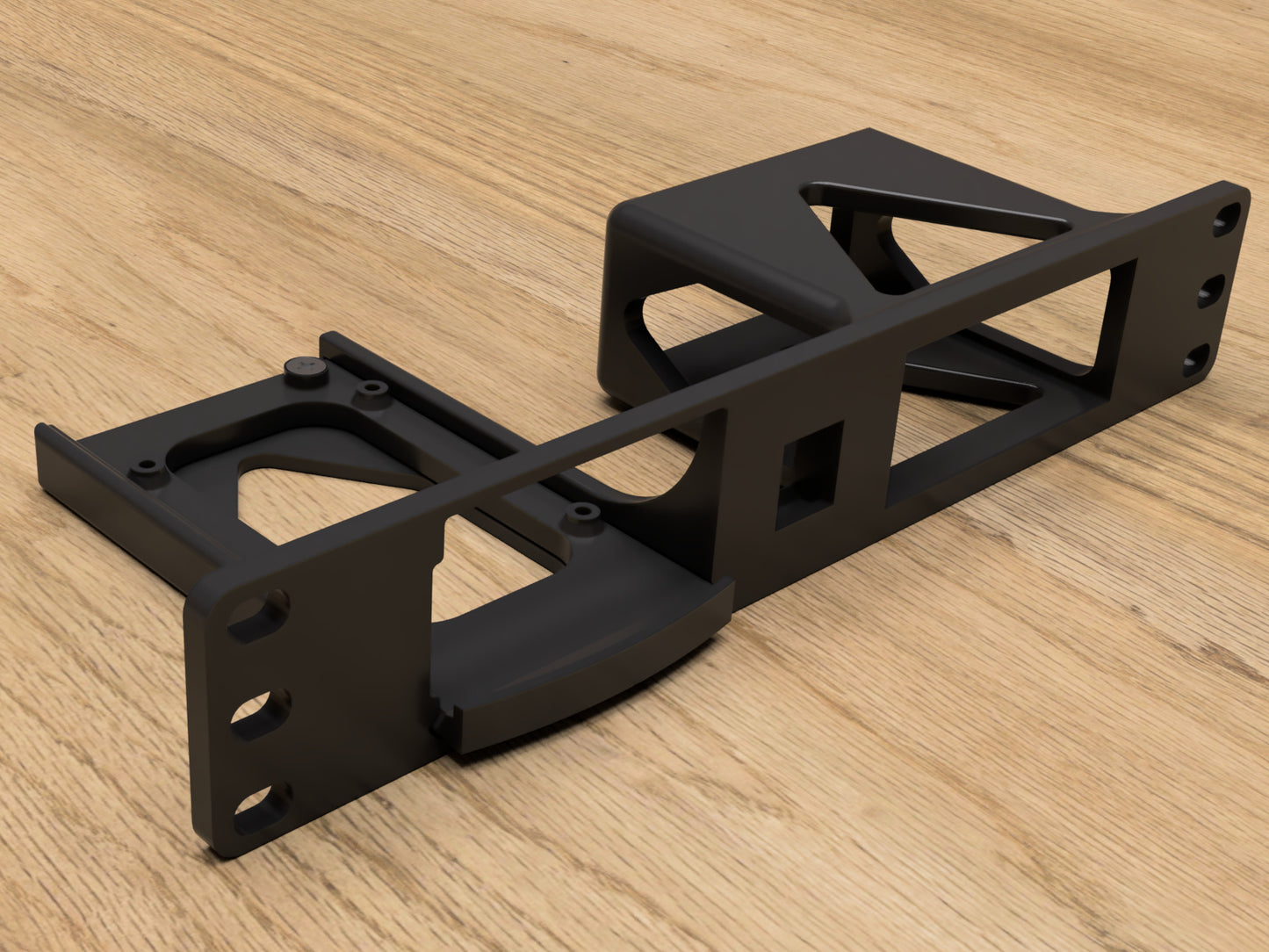

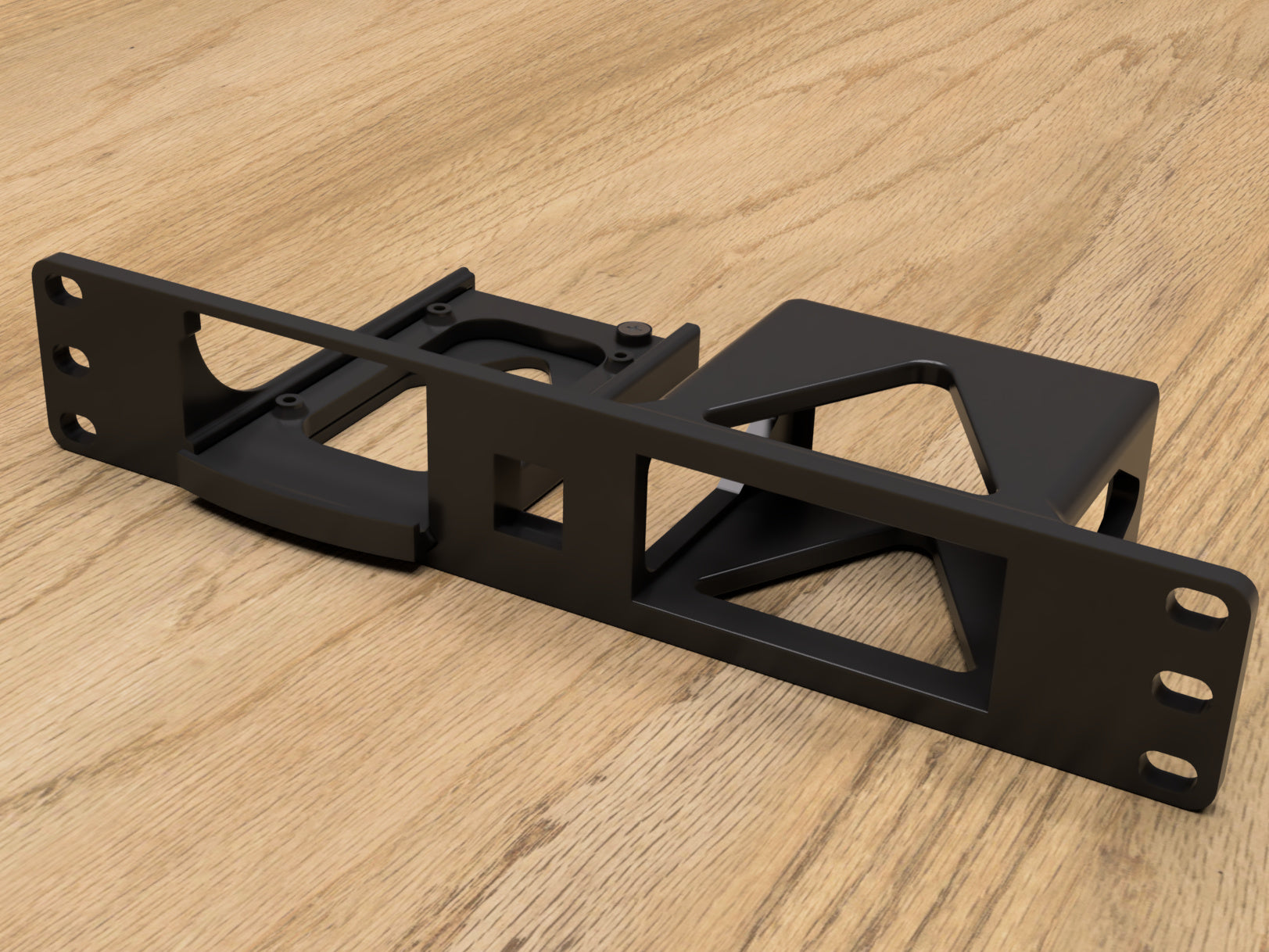

3D Printed 1RU rack mount for the Lutron Smart Bridge / Smart Bridge PRO Hub (L-BDG2-WH / L-BDGPRO2-WH) and RaspberryPi 3B, 4 or 5 board. Now in a design to suit 10 Inch Racks!
The Luton slides into the frame from the front.

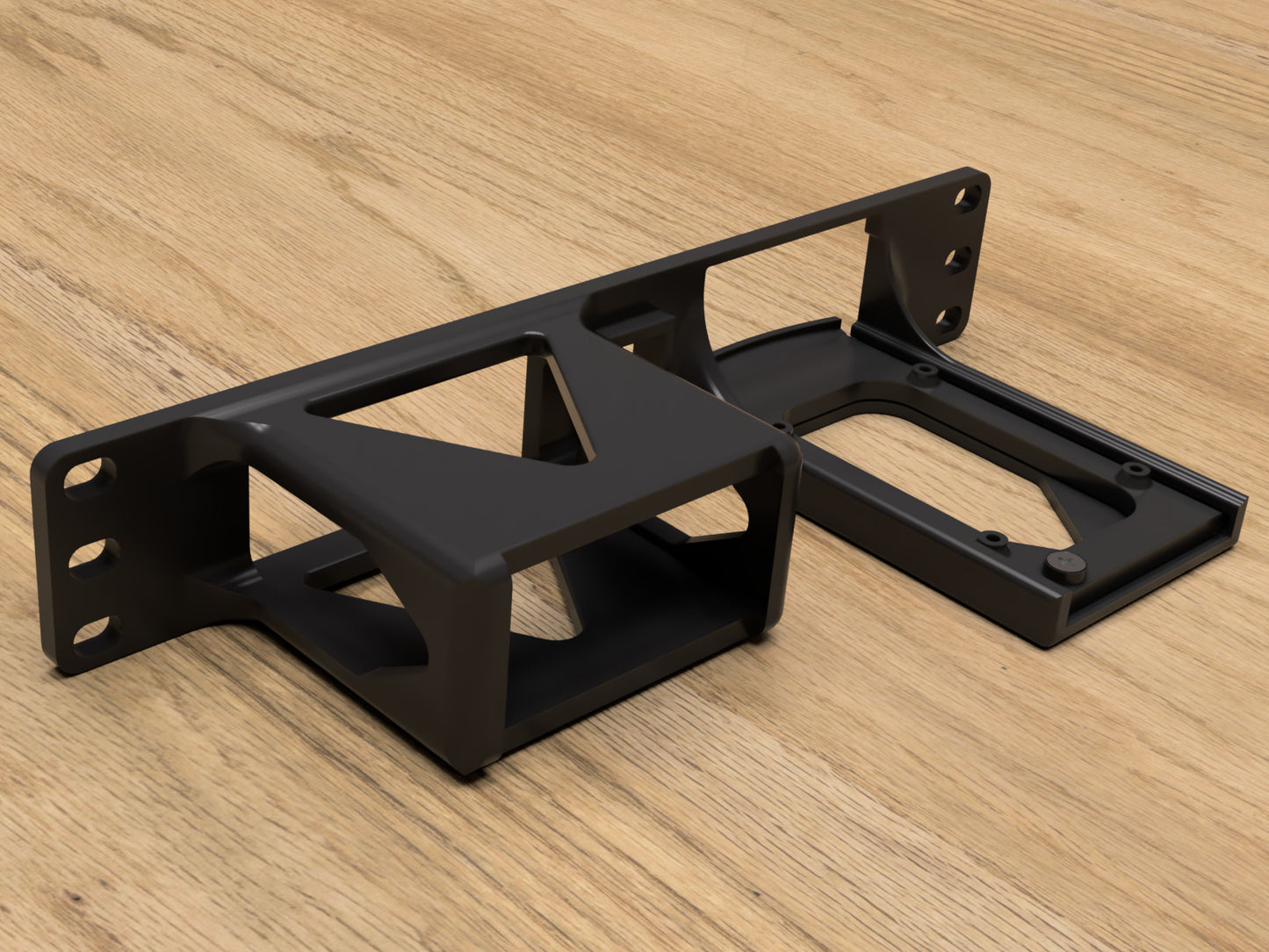

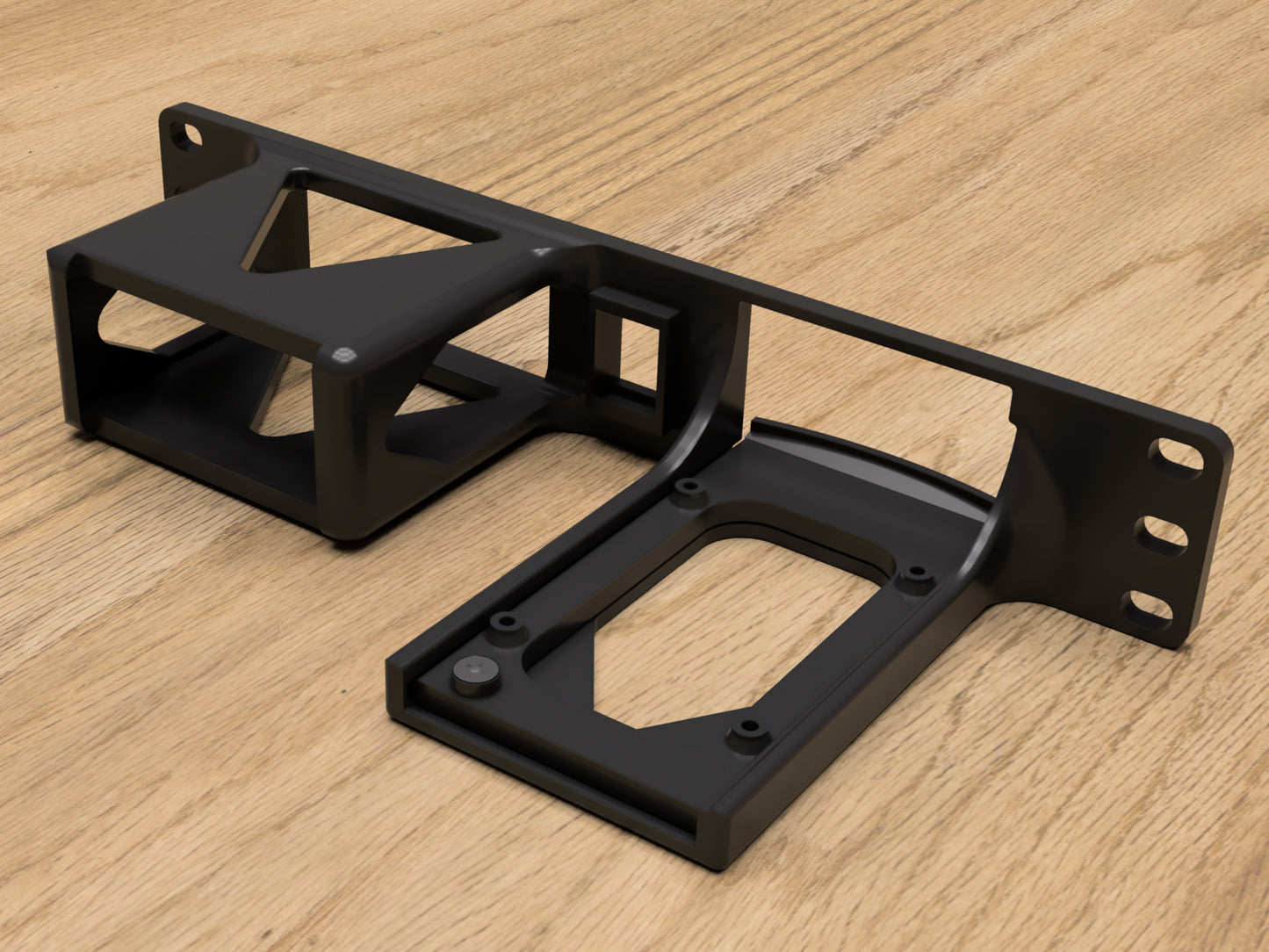

The rPI is mounted onto removable sled so that it is easy to remove, but you can also secure it with a screw if you'd prefer to hold it in place.
The screws to fasten the rPI to the tray are NOT included. However for reference, if you are using a HAT with your RPI, then you can use some 12mm M2.5 screws, up through the bottom of the Mounting Tray into the HAT Standoffs.
This listing is just for the Mount, other photos showing Blanks etc are just for example. Does not include Rack Screws, Cage Nuts, or Network equipment.
The 10 Inch range is expanding, so if you don't see a mount for your equipment let me know and I can prioritize designing one for you.
Do you need to have text or a logo printed on the front? Custom color? Let me know and we can work it out!
Please note that all 3d printed items will have slight cosmetic differences due to the nature of the process. However, all items will be fully functional.
